Jet GroutingReliable and Safe solution for soil consolidation

Jet grouting is a ground improvement technique widely used in civil engineering to strengthen subsoils and weak rock formations, enabling them to safely support foundations.

  • It works by disaggregating the ground and mixing it with a cement-based grout slurry.
  • This mixing process take place by injecting grout into the ground at very high pressures (300 – 600 bar) through special nozzles positioned at the bottom of drilling rods.
  • Jet grouting targets specific areas, improving not only soil strength but also its resistance to water penetration.
  • As a result, it improves subsoil stability, reduces potential settlements, and significantly increases water-tightness.

Jet GroutingProducts

High-pressure triplex pumps

A range of diesel or electric motor pumps with power outputs from 100 to 800 kW.

Mixing unit

Automatic containerized mixers with outputs up to 120 m3/h.

Horizontal silos

Easily transportable and installable silos, with capacities of up to 90 tons.

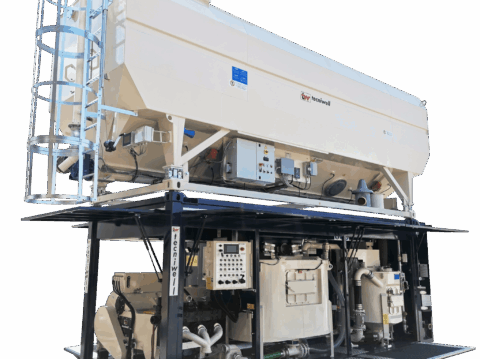

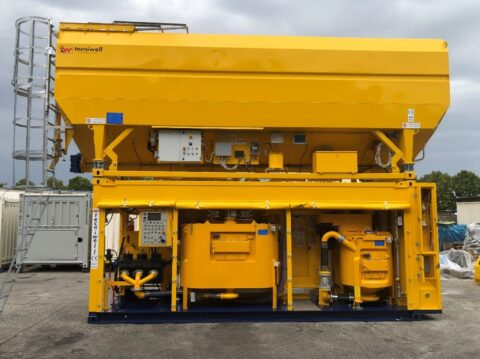

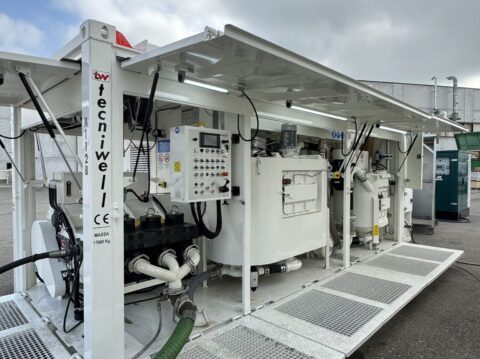

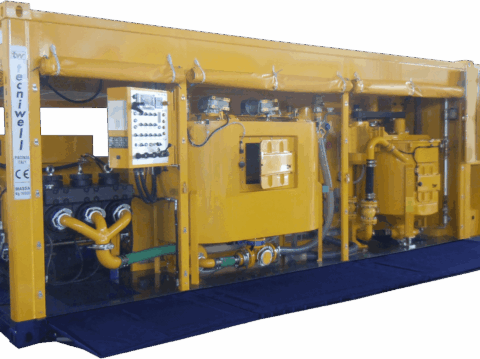

Compact Jet Grouting Units

Featuring a high-pressure triplex pump and a mixer integrated into a single 20′ container, this solution developed with Tecniwell’s advanced technology

Pump up to 550 hp and a mixer hourly production of up to 24 m³.
